Stainless Steel Basket Strainer for Industrial Pipelines

Simplex stainless steel basket strainer with removable perforated basket, swing-bolt cover, flanged ports and drain fitting for coarse particle removal in industrial liquid pipelines.

Inquérito
Partilhe o seu amor
Categoria: Etiquetas: , ,

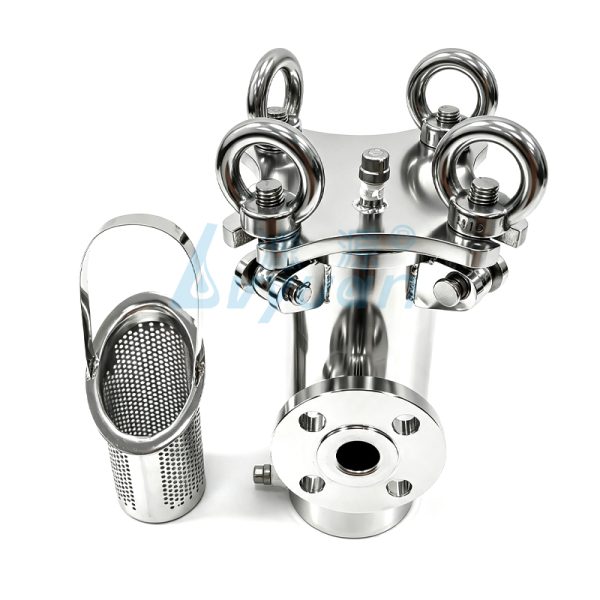

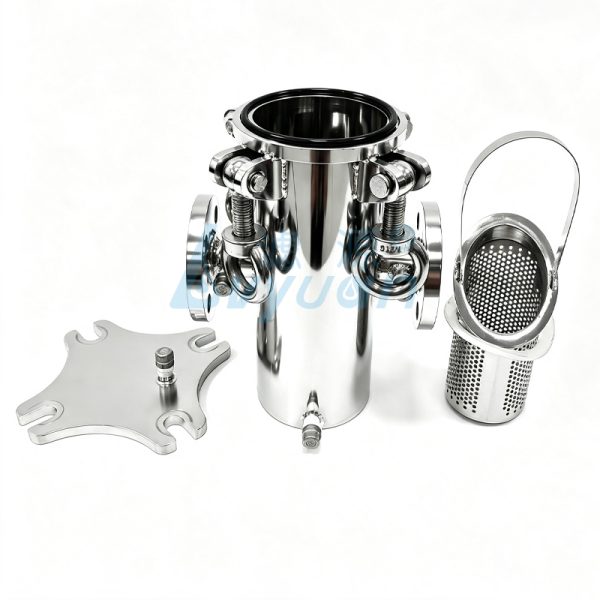

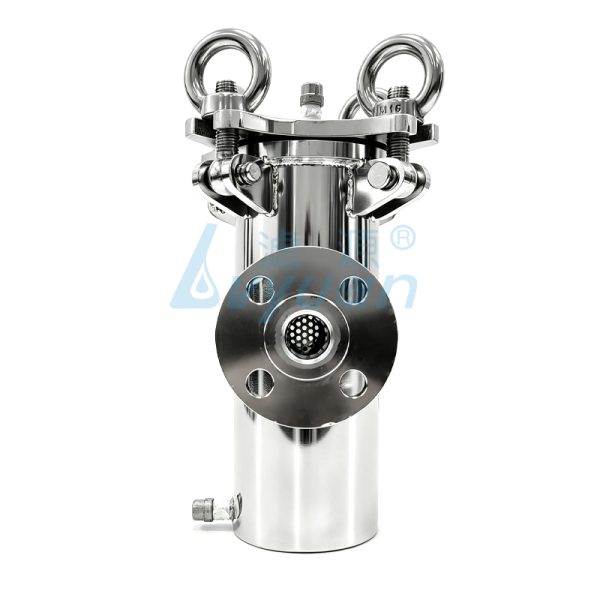

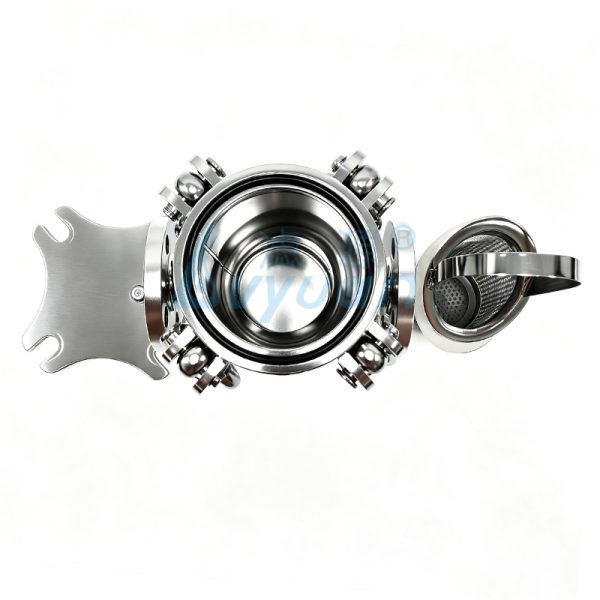

This simplex basket strainer uses a cylindrical metal body with a removable top cover secured by multiple swing eye bolts. A lift-out stainless steel perforated basket captures suspended solids and debris, while optional wire mesh lining allows finer filtration where required. Flanged or threaded process connections can be configured for different industrial piping arrangements.

The strainer is rated up to 150 psi (10 bar), with a maximum operating temperature of 356°F (180°C) depending on body material, gasket selection and service conditions. Filtration ratings from 50 to 3,000 μm can be achieved through perforation and mesh selection. It is suitable for industrial filtration solutions used for pipeline debris removal, pump protection and process equipment protection.

Basket Strainer (4)Basket Strainer (3)

Tipo

Simplex Basket Strainer
Material

SS304 / SS316L
Basket

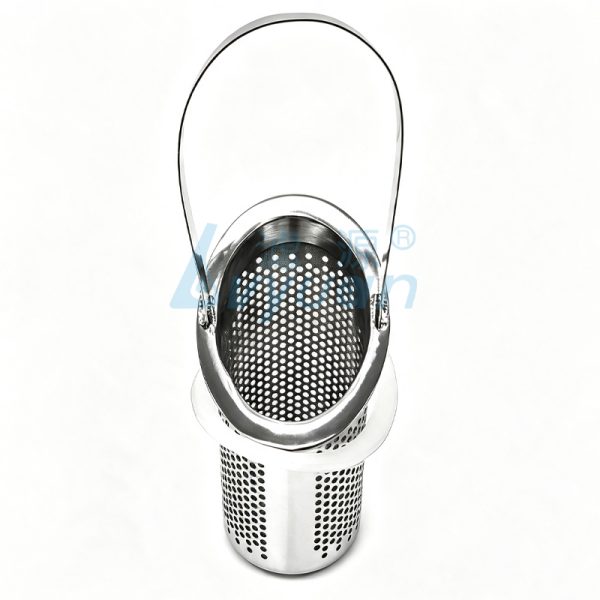

SS304 / SS316L Perforated Basket with Optional Wire Mesh Lining
Encerramento

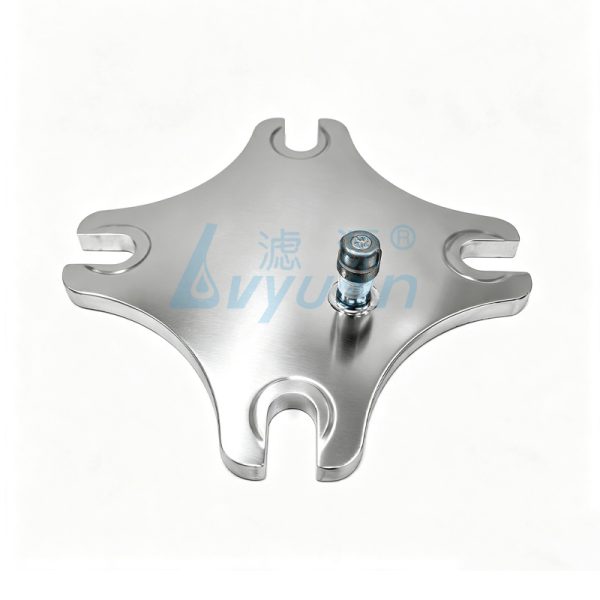

Removable Top Cover with Multiple Swing Eye Bolts
Ligação

NPT, BSP, Flange
Pressão de funcionamento

Max. 150 psi (10 bar), Subject to Design and Service Conditions
Temperatura de funcionamento

Max. 356°F (180°C), Subject to Seal Material and Pressure Rating
Classificação de filtração

50–3,000 μm, Depending on Perforation or Mesh Selection
Tratamento de superfície

Pickling & passivation, polishing, sandblasting
