Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops | Place of Origin | Guangdong, China | Brand Name | Lvyuan/OEM |
|---|---|---|---|---|---|
| Material | Customized | Weight | Customized | Size | Customized |
| Power | Customized | Warranty | 1 Year | After-sales Service Provided | Online support |
| Model Name | Stainless steel housing filter 1~7 stage cartridge water filter system | Length | 10 inch 20 inch 30 inch 40 inch | Usage | Oil/gas/air/liquid water filtration |
| Main body material | Stainless steel 304 / 316L | Filter housing type | Tubular | Principle | Pressure filtration |
| Stages | 1 – 7 stages | Packaging | Netural packing, or wooden case | Filter | Bag filter & Cartridge filter |
| Cart | Stainless steel 304/316L | Supply Ability | 100 Piece/Pieces per Day |

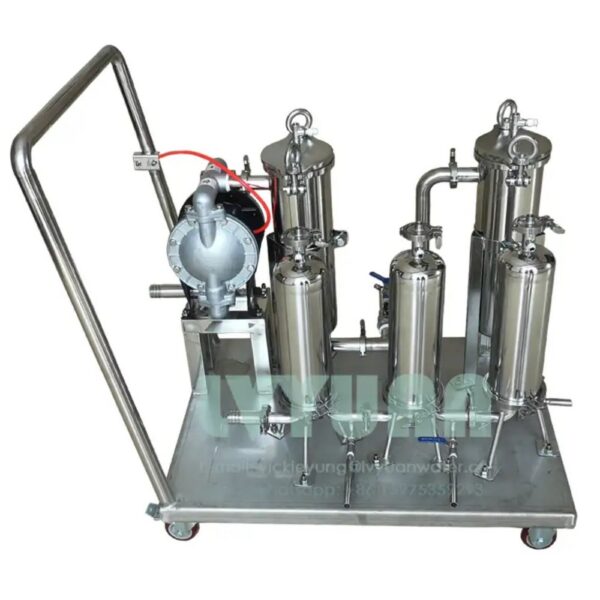

Hand trolley stainless steel 10 microns housing filter 1~7 stage 304 316L cartridge water filter system with gas air driven pump. Movable filter is composed of prefilter, oil pump and filtration unit, prefilter for a
metal netting, to prevent the large solid into the pump, oil pump is usually gear pump, to convey the unpurified
oil into the filtration device.The filter device is a small manual compression plate and frame filter press,
using special filter paper as a filter medium. Under the oil pump pressure help, the unpurified oil into the
plate & frame filter press, it will be a pure filter oil after it throughs the filter paper. The solid impurities
trapped in the filter paper surface, a small amount of water is absorbed by the wool stoma of filter pape.
The filtration pressure is normal not over 0.3MPa, when there is too much deposition impurity on the filter
paper surface, the filter pressure is increased to 0.35 MPa, or when the moisture of filter paper absorption is
close to saturation state, residual moisture in the oil filter no longer falls, it should be replaced the filter paper. When the oil has a high viscosity,it can be preheating again, in order to reduce the viscosity for reusing.
This kind of oil filter machine can remove the solid impurities and a small amount of water, it is suitable for the general electric oil and lubricating oil refining.
