Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 500 units/Month |
| Place of Origin: | Guangdong, China |
| Payment: | T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal |
| MOQ: | 10 pcs |
| Model: | LY-PL-PES |
| Delivery Time: | Within 7 working days |
| Certification: | SGS |
| Brand: | OEM/Lvyuan |

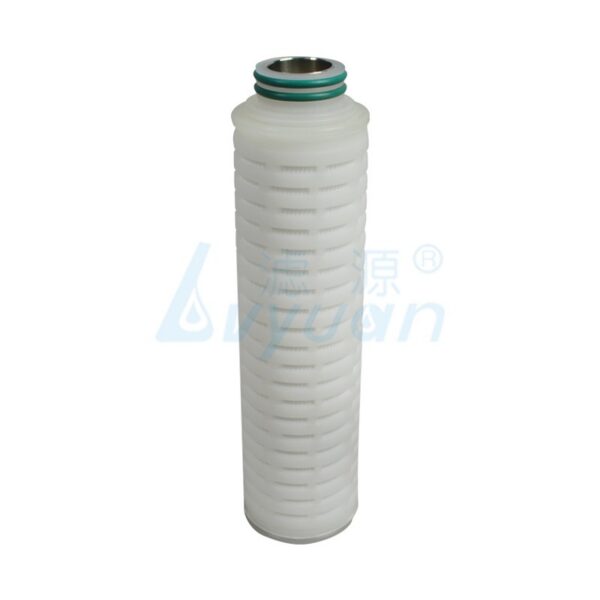

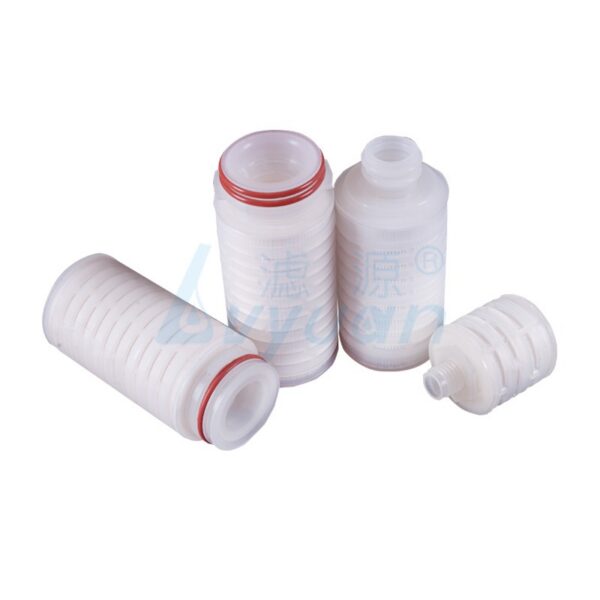

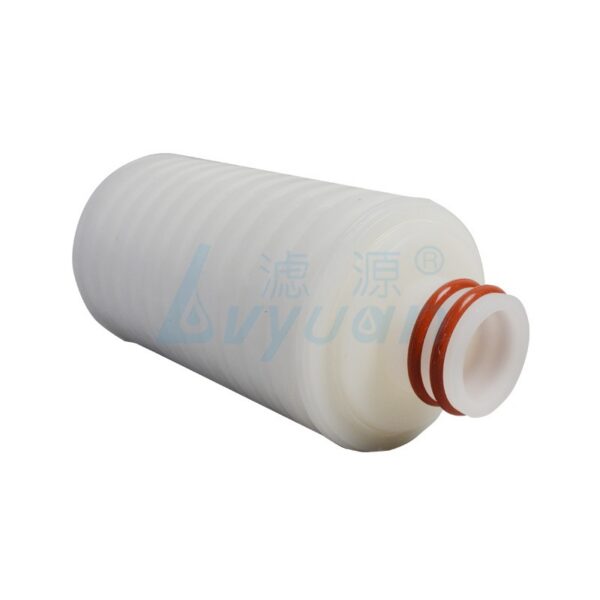

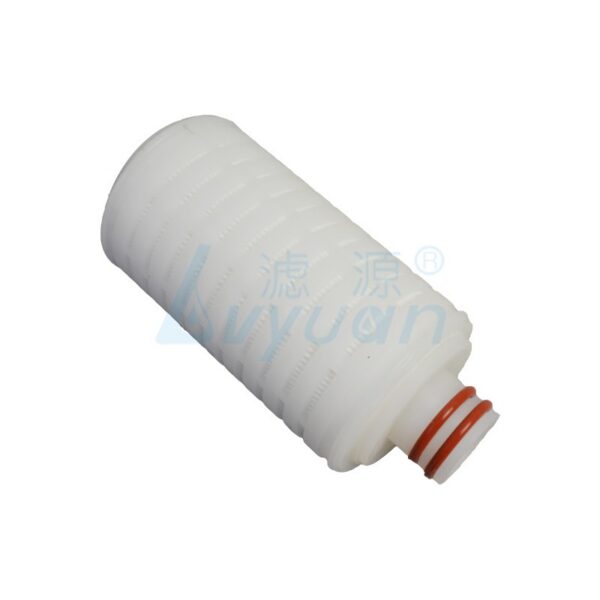

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps is polypropylene. Absolute precision polyethersulfone membrane (PES) filter cartridges, adapters are thermally welded with media without using any glue, not any pollution.
The PES filter cartridge is ideal for critical prefiltration to sterilise applications and final filtration in a broad range of demanding non-sterile application. The inherently hydrophilic membrane contains no surfactant or wetting agents, which leads to effective filtration and flow rates
Due to its wide range of PH values and lower adsorption to protein than nylon membrane, it has become the preferred filter cartridge for final filtration in pharmaceutical, food and chemical industries.
Product Feature
| Product Name | 0.2 μm PES membrane pleated cartridge filter 5 inch |
| Filter media | PES(Polyethersulfone) |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7” (69mm) |
| Length | 5”, 9.75”, 10”, 20”, 30”, 40”, Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.6m² |
| Max.operating temperature | ≤140℃, 0.28Mpa |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65 |
Medicine
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
